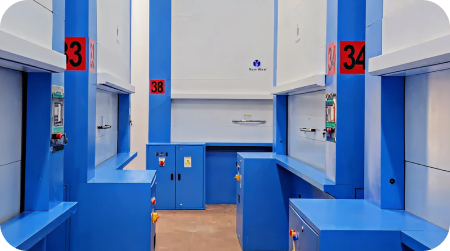

Tech-Mark’s Carousel Storage System, equipped with an advanced PLC controller and numeric display HMI, ensures efficient and quick material retrieval.
Operating in both clockwise and anticlockwise directions, it selects the shortest path, enhancing retrieval speed. Interfacing capabilities with computers, including an RS232C serial port, facilitate seamless integration into existing systems. This system boasts smooth operation with VFD technology, ensuring jerk-free movement and noise levels below 70db.
Safety features, including curtain sensors and locking provisions, prioritize secure material handling. With low power consumption, the system operates on single or three-phase supply, offering energy-efficient power management.
Advantages include enhanced efficiency with nearly 80% more pick-ups per shift compared to conventional storage, optimal space utilization resulting in 80% floor space savings, and significant manpower reduction. User-friendly design allows even unskilled personnel to operate it effectively, with manual operation during power failures.
Features
- Maximizes Storage Space: Utilizes the full available height, creating more storage capacity within a limited footprint.
- Efficient Operation: Employs the well-established Paternoster principle for a smooth and reliable workflow.
- Secure and Accessible: Enclosed with sheet metal cladding for protection, featuring an ergonomically positioned window for convenient material handling.
- Comprehensive Control: Controlled by PC software, offering inventory and document management, PLC control, and an emergency manual mode.
- Scalable and Adaptable: Available in various heights (2m to 20m) and comes with specially designed trays to accommodate different shapes, sizes, and weight requirements of stored materials.
CUSTOMER BENEFITS:
- Tech-Mark’s Carousel Storage System, driven by an advanced PLC controller and numeric display HMI, ensures quick and precise material retrieval.
- Operating in both clockwise and anticlockwise directions, the system selects the shortest possible path, streamlining the retrieval process and minimizing operational delays.
- The ability to retrieve materials using either the shelf number or part number provides flexibility, enabling a seamless and efficient workflow for users.
- The system’s VFD technology ensures smooth and jerk-free movements, guaranteeing operational reliability and preventing damage to stored materials during start-stop operations.
- Safety features, including curtain sensors and locking provisions, prioritize the security of materials and personnel. The system stops automatically if materials protrude or if an operator attempts access while it’s in motion.
- Low power consumption, drawing 10 Amp current from a single or three-phase supply, contributes to energy-efficient power management, ensuring safe and economical operations.
- With nearly 80% more efficiency in pick-ups per shift compared to conventional storage, the Carousel Storage System reduces manpower engagement significantly, translating into cost savings for businesses.
- Optimal space utilization, saving up to 80% of floor space, adds to cost-efficiency. The system’s user-friendly design allows even unskilled personnel, after minimal training, to operate it effectively.
- Quick installation, facilitated by a modular design that doesn’t require special provisions like pits or foundations, coupled with the bundled software for easy interfacing, contributes to operational efficiency, making it a cost-effective and user-friendly storage solution.
